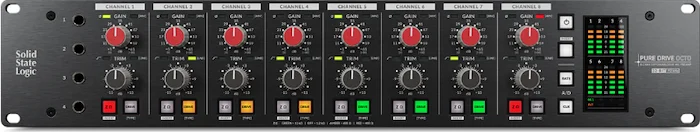

SSL Pure Drive Octo Microphone Preamp
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description
The PURE DRIVE OCTO harnesses Solid State Logic's renowned SuperAnalogue PureDrive™ microphone preamp technology, originally featured in the ORIGIN console. This advanced unit introduces a new DRIVE mode, comprehensive connectivity, and state-of-the-art digital conversion, all within a compact 8-channel 2U rackmount format. The ORIGIN recording console, a contemporary-classic from SSL, first introduced the groundbreaking PureDrive™ microphone preamplifier. This innovative preamp maintains the clarity and punch of SSL's previous designs while also offering the flexibility to switch its character to a warm, harmonically rich, and driven tone that varies with gain.
Product Features
- 8 channel high-performance PureDrive™ mic preamps +48V phantom power, polarity invert and 3rd order hi-pass filter Stepped Gain control up to +65 dB Gain 31-step Trim control, with precise 1 dB increments – overdrive the signal with the Gain control and then reduce to a suitable level using Trim. 3 modes for each preamp – Clean, Classic Drive and Asymmetric Drive Mic/Line Input Switching Mic via XLR Line via choice of TRS Jack or dedicated D-Sub connectivity 4 x front panel Hi-Z/DI Instrument unbalanced inputs with automatic input detection 4 mic preamp input impedance options – explore new tonal possibilities from your dynamic and ribbon microphones Balanced analogue outputs/insert sends for external processing +24 dBu professional line level insert returns/ADC inputs Analogue to digital connectivity via ADAT, AES and USB Ability to switch ADAT and AES connections to source audio from DAW outputs (USB) instead of the A/D converter USB soundcard mode: OCTO – 8 in / 24 out (@44.1/48 kHz) ; 8 x analogue / 8 AES + 16 ADAT outs Stepped pots and digitally controlled analogue electronics for precision, stereo matching and ease of recall Up to 192 kHz and 32-bit conversion, professional I/O levels (+24 dBu = 0 dBFS). Selectable Auto-Sleep mode Auto-ranging Wordclock In and Out
