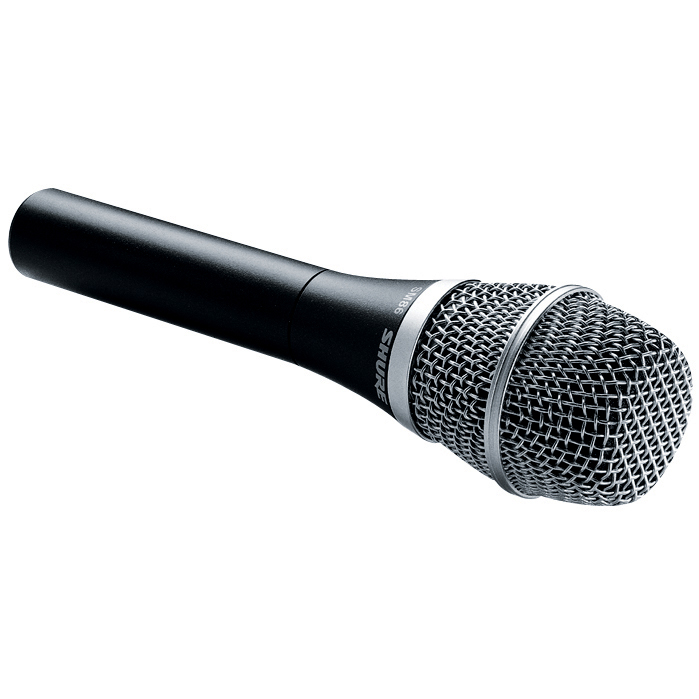

SM Series Handheld Condenser Microphone (Cardioid)
Item Unavailable
To get notified when this product becomes available, click the button below. We'll send you an email when it's back in stock.
Product Description
The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering a clear, studio-quality sound.
A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise.
Transducer Type
Condenser (electret bias)
Frequency Response
50 to 18,000 Hz
Polar Pattern
Cardioid
Output Impedance
150 Ohms at 1 kHz
Recommended minimum load impedance: 600 Ohms
Sensitivity (at 1,000 Hz)
Open Circuit Voltage: -50 dBV/Pa (3.15 mV)
(1 Pa = 94 dB SPL)
Output Clipping Level
1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
Maximum SPL (at 1,000 Hz)
1000 ohm load (1% THD): 147 dB
Self-Noise
23 dB typical, A-weighted
Dynamic Range (1000 ohms)
124 dB (maximum SPL to A-weighted noise level
Signal-to-Noise Ratio
71 dB at 94 dB SPL (IEC 651)*
*S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
Power
Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain: 5.2 mA
Connector
Three-pin (XLR) professional audio
Case
Dark gray enamel-painted steel with matte-finished silver colored steel grille
Net Weight
Net: 278 grams (9.8 oz)
Environmental Conditions
Operating: -18 degrees to 60 degrees C (0 degrees to 135 degrees F) (relative humidity >90%)
Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F) (relative humidity >80%)
A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise.
Transducer Type
Condenser (electret bias)
Frequency Response
50 to 18,000 Hz
Polar Pattern
Cardioid
Output Impedance
150 Ohms at 1 kHz
Recommended minimum load impedance: 600 Ohms
Sensitivity (at 1,000 Hz)
Open Circuit Voltage: -50 dBV/Pa (3.15 mV)
(1 Pa = 94 dB SPL)
Output Clipping Level
1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
Maximum SPL (at 1,000 Hz)
1000 ohm load (1% THD): 147 dB
Self-Noise
23 dB typical, A-weighted
Dynamic Range (1000 ohms)
124 dB (maximum SPL to A-weighted noise level
Signal-to-Noise Ratio
71 dB at 94 dB SPL (IEC 651)*
*S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
Power
Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain: 5.2 mA
Connector
Three-pin (XLR) professional audio
Case
Dark gray enamel-painted steel with matte-finished silver colored steel grille
Net Weight
Net: 278 grams (9.8 oz)
Environmental Conditions
Operating: -18 degrees to 60 degrees C (0 degrees to 135 degrees F) (relative humidity >90%)
Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F) (relative humidity >80%)
Product Features
- Capsule Type: Condenser
