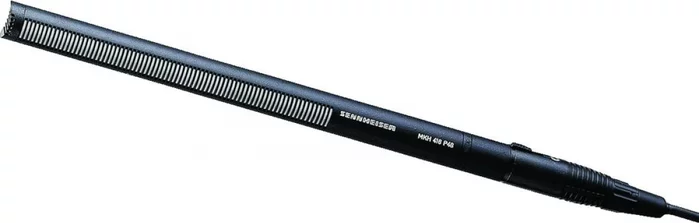

MKH Short Shot Gun Microphone
Product Description
The venerable MKH 416 is a compact pressure-gradient microphone with short interference tube, highly immune to humidity due to its RF condenser design. Featuring high directivity, low self noise, high consonant articulation and feedback rejection, the MKH 416 can handle difficult exterior filming and reporting conditions without any difficulty. Supercardioid/lobe pattern, matte black finish, supplied with the MZW415 windscreen.
Current consumption: 2 mA
Dimensions: d 0.7 x 9.8 in (19 x 250 mm)
Equivalent noise level: 13 dB
Equivalent noise level: 24 dB
Frequency response (microphone): 40 - 20,000 Hz
Max. sound pressure level (passive): 130 dB Phantom
Min. terminating impedance: 800
Nominal impedance: 25
Pick-up pattern: Super-cardioid/lobar
Sensitivity in free field, no load (1kHz): 25 mV/Pa +- 1 dB
Voltage: 48 ± 4 V Phantom
Current consumption: 2 mA
Dimensions: d 0.7 x 9.8 in (19 x 250 mm)
Equivalent noise level: 13 dB
Equivalent noise level: 24 dB
Frequency response (microphone): 40 - 20,000 Hz
Max. sound pressure level (passive): 130 dB Phantom
Min. terminating impedance: 800
Nominal impedance: 25
Pick-up pattern: Super-cardioid/lobar
Sensitivity in free field, no load (1kHz): 25 mV/Pa +- 1 dB
Voltage: 48 ± 4 V Phantom
Product Features
- Pressure gradient receiver with short interference tube
- Hypercardioid at low and medium frequency
- Above 2kHz approaches lobar pattern
